Wall System
THE
GAME-CHANGING WALL SYSTEM THAT SAVES:
TIME
MONEY
EFFORT
MEGABLOCK Production
MEGABLOCK WALL SYSTEM
01
02
USER FRIENDLY and FAST
UNIFORM and CONSISTENT
03
MESS FREE and ENVIRONMENT FRIENDLY
Speed is achieved once the workers get used to the system.
05
SAVES TIME and MONEY
Only one layer of skin coat is required as the tolerance of thickness and height of MEGABLOCK is just 2mm.
04
STRONG and DURABLE
The finished wall is practically mess free, with less waste of materials and less clean-up activity.
06

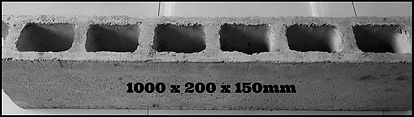

DIMENSIONS and SIZE
The system, when Properly laid, can bring down the cost of labor and materials by eliminating the plastering phase of the back to back wall.
Test results show that the MEGABLOCK can resist 700 to 1000 P.S.I
How to Install MEGABLOCK
1. Set up a concrete base (zocalo) on which to lay the first level of MEGABLOCKS. Align and properly level this first row of MEGABLOCKS by using a fish line and level bar.
2. Prepare a cement mix until of toothpaste consistency. Using a pallet, spread the mix on the upper lip of the MEGABLOCK after every (3) inches. This will be the base for the next level of MEGABLOCKS. For subsequent levels, such "soldier" or "interlocking" laying method. Fill the voids on the joints and level off the MEGABLOCKS with the excess cement.
3. Horizontal materials such as steel bars, electrical tubes and water pipes may pass thru the MEGABLOCK'S concrete connector indentations.
4. The cement mix in Step 2 may also be used to fill up the minor pores of the MEGABLOCKS. This will save on the use of a skim coat.
5. Finish off the MEGABLOCK wall with a skim coat using a pallet. Since the MEGABLOCK are already well-aligned, the skim coat will be ready to accept the next finishing stage such as painting of the wall.
6. For Exterior walls. a specially designed "Render" type Skim coat may be used before the standard extra fine Skim coat will applied.
